NRND

INT043BTFT

4.3" Integrated TFT Driver Board

  • Image
    INT043TFT

    Request a Quote

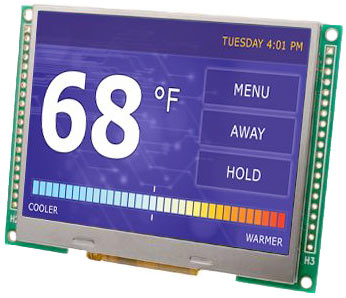

    LCD Driver Board with Built-In 4.3" TFT Display

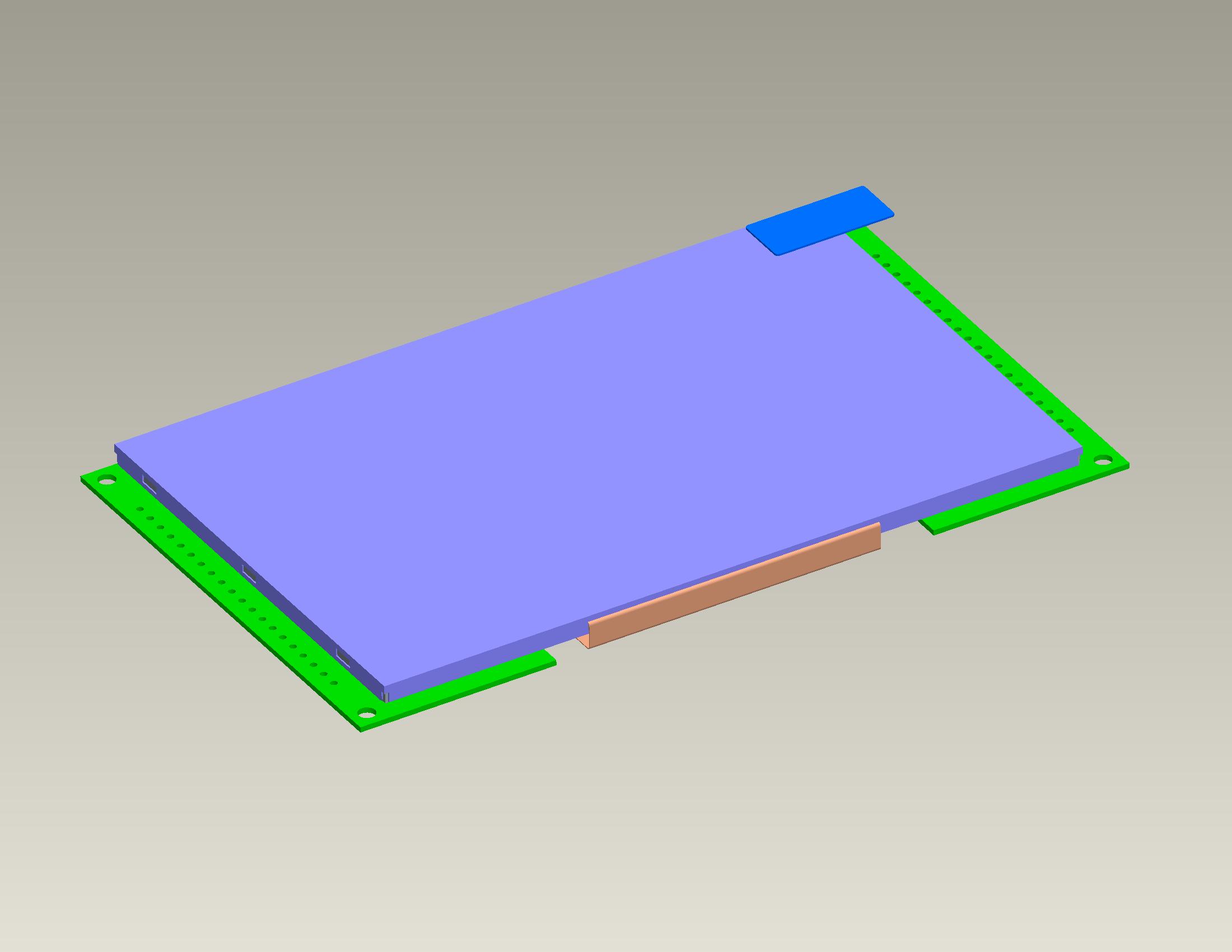

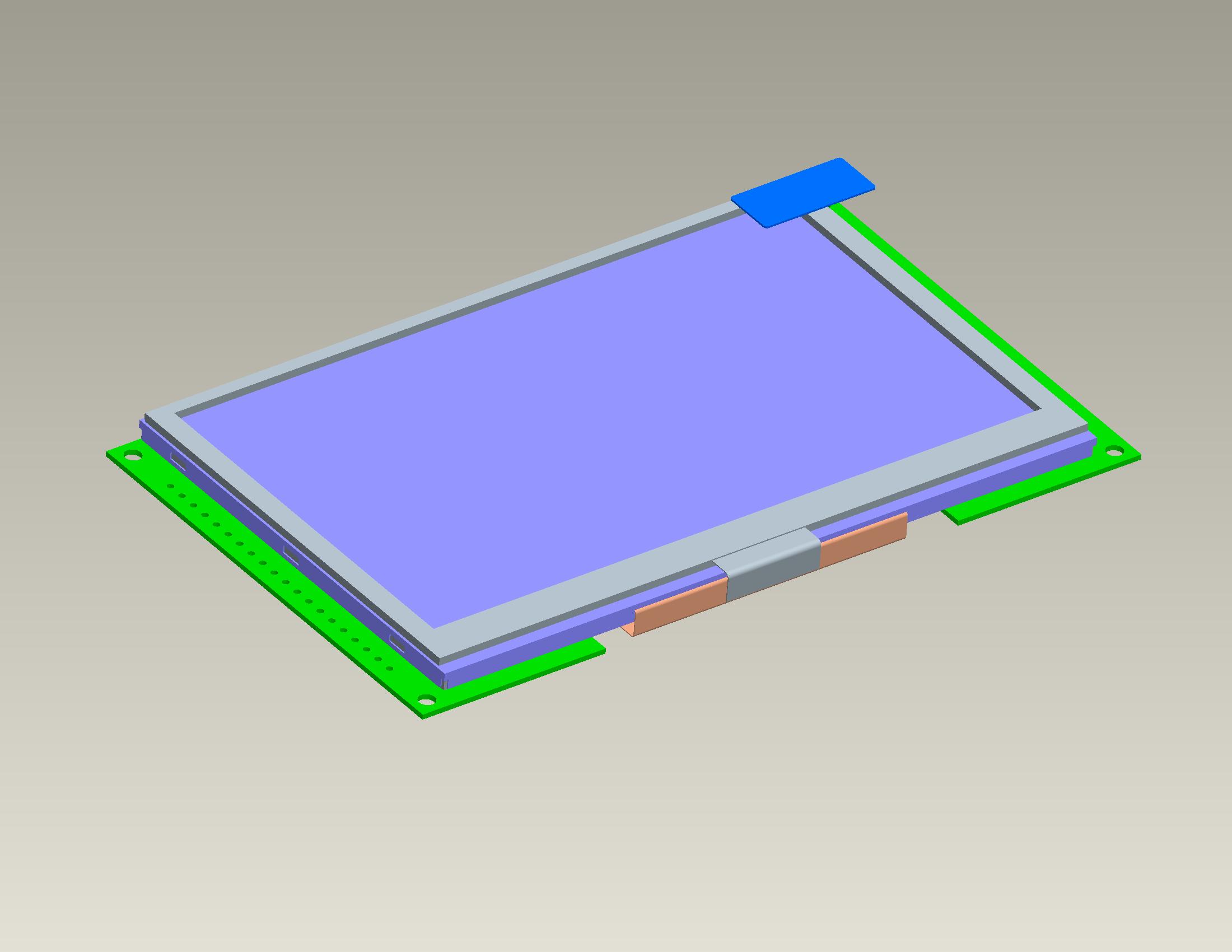

    INT043BTFT and INT043BTFT-TS are embedded display driver boards based on our 4.3 inch 480 x 272 RGB resolution TFT display module. Mounted on the embedded board is the Solomon Systech SSD1961 LCD controller that supports common RAM-less LCD drivers and offers the following features and benefits:

    • 8080/ 6800 MCU Interface
    • Built-in 675K byte Frame Buffer
    • Screen Display Rotation
    • Vertical Scrolling
    • Display Mirroring
    • Programmable Contrast and Color Saturation Control
    • Auto-Initialization of TFT Display
    • Embedded 4-wire Resistive Touch Panel Control
    • Built-in Clock Generator
    • Dynamic Backlight Control via PWM Signal
    • Deep Sleep Mode for Power Saving

    Technical Overview

    Product Status Not Recommended for New Design
    Display Size 4.3 inch
    Display Resolution 480 (RGB) x 272
    Viewing Angle 6 o'clock
    Interface Type 8080 or 6800 MCU
    LCD Controller IC Solomon Systech SSD1961
    Module Size (w x h) 116.2 x 69.7 mm
    Operating Temperature -20 ~ 70°C
    Touch Screen Option 4-Wire Resistive Touchscreen

    Support Documents

    Product Notifications

    PCN24005 |

    Minimum Order Quantity Increased
