INT022ATFT

2.2" Integrated TFT Driver Board

  • INT022ATFT

This product is EOL and no longer available for direct purchase.

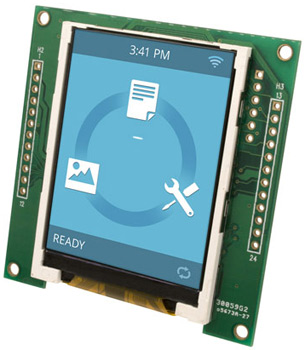

Auto-Initializing Driver Board with Integrated 2.2" TFT LCD Display

INT022ATFT is an embedded display driver board based on our 2.2 inch 240 x 320 RGB resolution TFT display module. Mounted on the embedded board is the RAIO RA8872 LCD controller that offers the following features and benefits:

  • 8080/6800 MCU Interface
  • Text/Graphic mixed mode

  • Low power sleep mode

  • Embedded 10Kb Character ROM per ISO8859 - 1/2/3/4 with cursor
  • Screen display rotation
  • Font vertical rotation

  • 256 User defined 8x16 characters

  • 32 User defined graphic patterns

  • Font enlargement x1, x2, x3, x4, horizontal or vertical

  • Auto-initialization
  • Embedded PWM control and LED driving circuit for backlight

Technical Overview

Status EOL
Display Size 2.2 inch
Display Resolution 240 (RGB) x 320
Viewing Angle 6 o'clock
Interface Type 8080 or 6800 MCU
LCD Controller IC RAiO RA8872
Module Size (w x h) 60 x 61.5 mm
Operating Temperature -20 ~ 70°C
