64240C Series

64240C Graphic LCD Module

  • Image

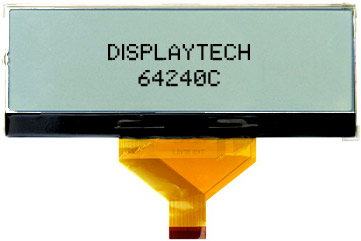

    64240C
  • Image

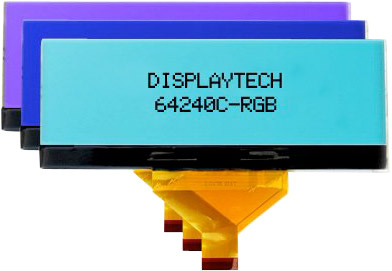

    64240C-RGB LCD

Request a Quote

240x64 Monochrome Graphic Display

Our 64240C is a COG LCD that uses two chips of the Sitronix ST7565P in master/ slave mode. This display module has been used in audio and medical equipment, alike. The most popular combinations for this module use our white or RGB backlight. This LCD has a FPC interface.

ST7565P is a single-chip dot-matrix LCD driver that can be connected directly to a microprocessor bus. 8-bit parallel or serial display data sent from the microprocessor is stored in the internal Display Data RAM and this chip generates LCD driving signals independent of the microprocessor. Each data bits (65x132) of the internal Display Data RAM is 1-to-1 correspondence with each pixels (65x132) on the LCD panel, therefore, ST7565P enables displays with a high degree of freedom.

Technical Overview

Display Resolution 240 x 64
Viewing Angle 6 o'clock
Display Connector FPC
LCD Driver IC Sitronix ST7565P
Module Size (w x h x d) 144.9 x 56.4 x 6.5 mm
View Area (w x h) 132.6 x 39 mm
Pixel Size 0.5 x 0.5 mm
Driving Method 1/65 Duty, 1/9 Bias
Operating Temperature Wide (-20 ~ 70°C)
Options RGB Backlight Available
