HDP-320B Series
320W Embedded Power Supply
Request a Quote

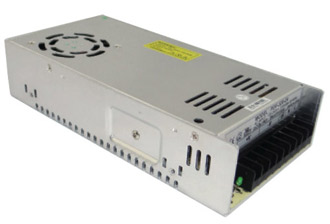

320W Single Output Enclosed AC-DC Power Supply
The HDP-320B series is a highly efficient, 320 watt enclosed frame power supply with built-in cooling fan and active PFC function. This switch mode power supply is available in 3.3V, 5V, 7.5V, 12V, 24V, 36V and 48V DC outputs. This embedded 320W power supply has safety certifications and meets EMC standards including UL60950 1 and EN 61000.
Technical Overview
| Type | Closed |
| Wattage | 320W |
| Input Voltage | 90 ~ 264 |
| Voltage | 3.3, 5.0, 7.5, 12, 24, 36, 48 |
| Current | 0 ~ 60A |

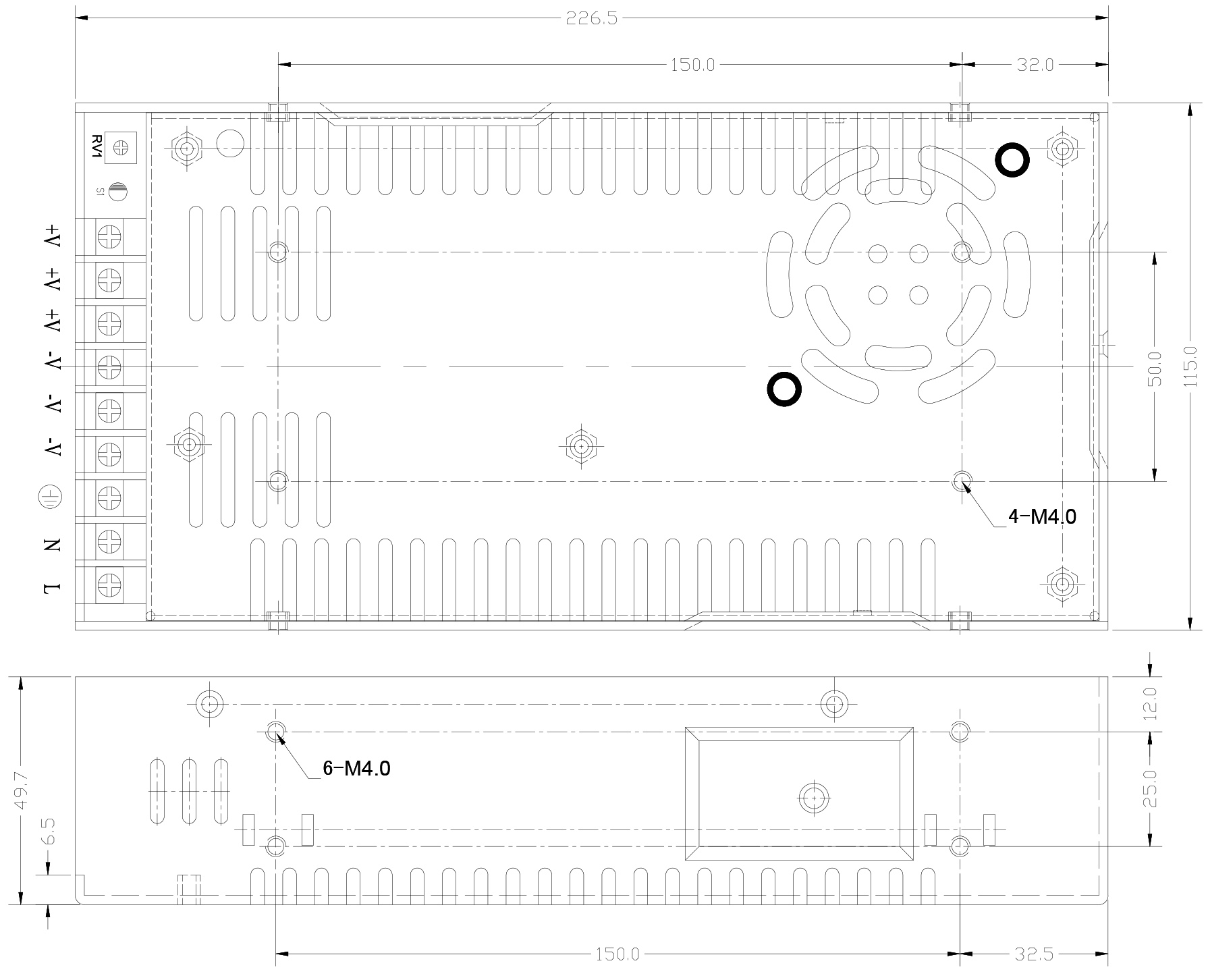

| Dimensions | 226.5 x 115 x 50 mm |
| Output | Single |
| Certifications | UL, cUL, CE, CB, w/PFC |
