HDP-150A Series
150W Embedded Power Supply
Request a Quote

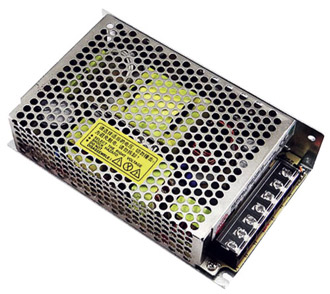

150W Single Output Embedded AC-DC Power Supply
The HDP-150A series is a 150 watt enclosed power supply with built-in active PFC function. This switch mode power supply is available in 12V, 15V, 24V, and 48V DC outputs and features high efficiency, long life and high reliability. The 150W embedded power supply includes conformal coating on the PCB soldering side and allows for easy assembly from top side. The HDP-150A series has UL 60950-1 and IEC 60950-1 certifications.
Technical Overview
| Type | Closed |
| Wattage | 150W |
| Input | 90 ~ 264 |
| Voltage | 12, 15, 24, 48 |
| Current | 0 ~ 12A |

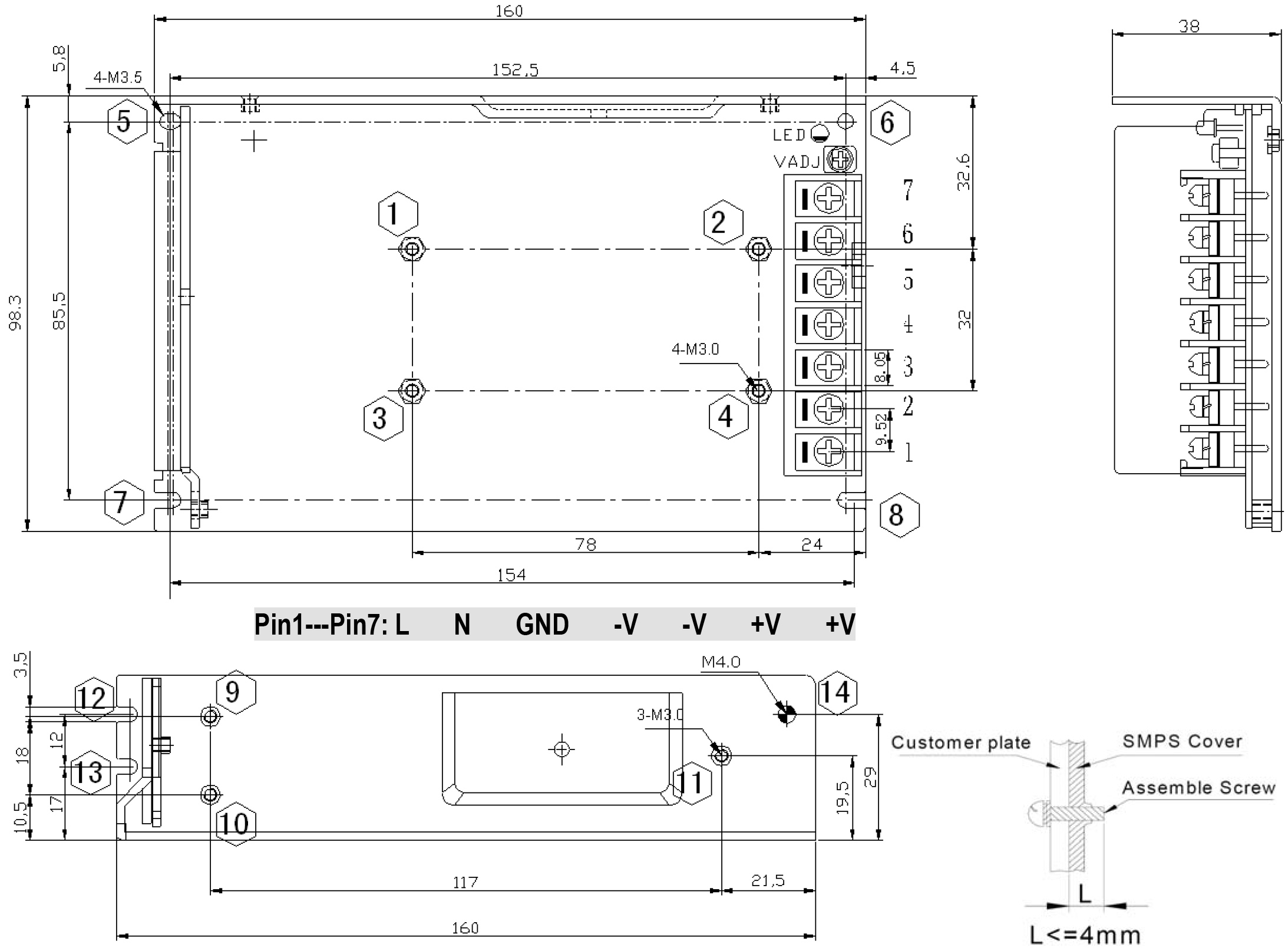

| Dimensions | 160 x 98.3 x 38 mm |
| Output | Single |
| Certifications | UL, cUL, CE, CB, w/PFC |
