204B Series

20x4 Character LCD Display

  • 204B

    Request a Quote

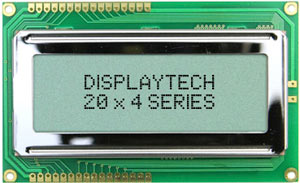

    204B Character LCD Module Series

    The 204B is one of our 20 character x 4 row chip on board (COB) alphanumeric displays. These classic LCD modules are available in a multitude of LCD and LED backlight color combinations to achieve the perfect look for your product. Some of our most popular combinations are STN yellow-green LCD with yellow-green LED backlight, STN blue LCD with white LED backlight, and STN grey LCD with either blue, amber or pure green LED backlight.

    Technical Overview

    Status Not Recommended for New Design
    Display Format 20x4
    Character Matrix (w x h) 5 x 8
    Character Size (w x h) 2.95 x 4.75 mm
    LCD Controller and Driver IC Sitronix ST7066U and ST7065C
    Module Size (w x h x d) 98 x 60 x 11 mm (14 mm max with LED backlight)
    View Area (w x h) 76 x 25.2 mm
    Pixel Size 0.55 x 0.55 mm
    Driving Method 1/16 Duty, 1/5 Bias
    Operating Temperature -20 ~ 70°C
