202G Series

202G Character LCD Module Series

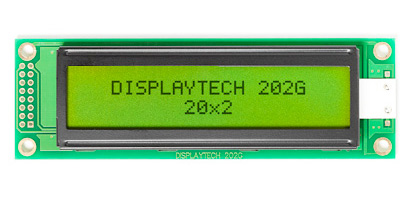

  • 202G-BC-BW

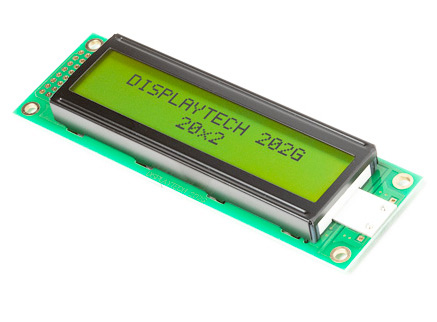

  • 202G-BC-BW side

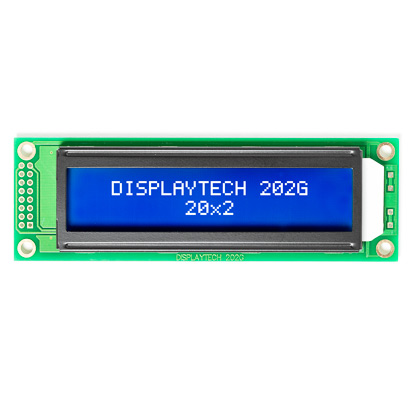

  • 202G-CC-BC-3LP

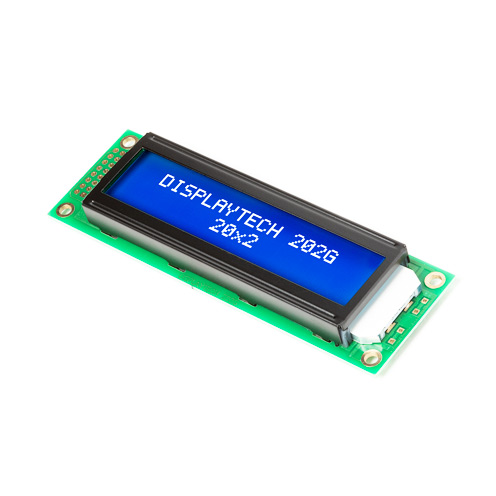

  • 202G-CC-BC-3LP side

Request a Quote

20x2 Character LCD Display

The Displaytech 202G series is a lineup of 20x2 character LCD modules. These modules have a 116x37 mm outer dimension with 85x18.6 mm viewing area on the display. The 202G 20x2 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green, white, blue, pure green, or amber color. Get a free quote direct from Displaytech for a 20x2 character LCD display from the 202G series.

Technical Overview

Display Format 20 Characters x 2 Lines
Dot Matrix (w x h) 5 x 8 Dots
Character Size (w x h) 3.2 x 5.55 mm
Character Pitch (w x h) 3.7 x 5.95 mm
LCD Driver IC Sitronix ST7066U (or equivalent)
Interface 4-bit Parallel and 8-bit Parallel
LCD Module Dimensions (w x h x d) 116 x 37 x 13.9 (MAX) mm
Viewing Area (w x h) 85 x 18.6 mm
Dot Size (w x h) 0.6 x 0.65 mm
Dot Pitch (w x h) 0.65 x 0.7 mm
Driving Method 1/16 Duty
Operating Temperature -20 ~ 70°C
