NRND
164A Series
16x4 Character LCD Display
Request a Quote

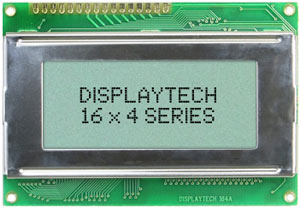

164A Character LCD Module Series
The 16x4 character LCD module is a low-cost display solution that offers a variety of LCD mode and backlight color combinations. Our 164A alphanumeric display features a stainless-steel metal bezel around the viewing area. This monochrome character LCD module includes: Sitronix ST7066U dot matrix LCD controller IC, 1/16 programmable duty cycles supporting 5x8 dot character fonts, and 4-bit or 8-bit MPU interface.
Customize the look of this 16x4 LCD by choosing the display type, backlight color, and backlight option (LED backlight, low power EL backlight, or no backlight). Some of our most popular combinations are: STN yellow-green LCD with yellow-green LED backlight, STN blue LCD with white LED backlight, and STN grey LCD with green LED backlight.
Technical Overview
| Status | Not Recommended for New Design |
| Replacement LCD | 164G |
| Display Format | 16x4 |
| Character Matrix (w x h) | 5 x 8 |
| Character Size (w x h) | 2.95 x 4.735 mm |
| LCD Controller and Driver IC | Sitronix ST7066U and ST7065C |
| Module Size (w x h x d) | 87 x 60 x 11 mm (14 mm max with LED backlight) |
| View Area (w x h) | 61.8 x 25.2 mm |
| Pixel Size | 0.55 x 0.5 mm |
| Driving Method | 1/16 Duty, 1/5 Bias |
| Operating Temperature | -20 ~ 70°C |
