162M Series
162M Character LCD Module Series
-
-
Request a Quote

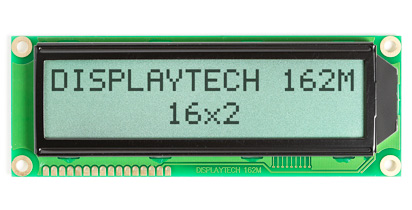

16x2 Character LCD Display
The Displaytech 162M series is a lineup of our largest 16x2 character LCD modules. These modules have a 122x44 mm outer dimension with 99x24 mm viewing area on the display. The 162M 16x2 LCD displays are available in STN or FSTN LCD modes with or without an LED backlight. The backlight color options include yellow green, white, blue, pure green, or amber color. Get a free quote direct from Displaytech for a 16x2 character LCD display from the 162M series.
Technical Overview
| Display Format | 16 Characters x 2 Lines |
| Dot Matrix (w x h) | 5 x 8 Dots |
| Character Size (w x h) | 4.84 x 8.06 mm |
| Character Pitch (w x h) | 6 x 9.66 mm |
| LCD Driver IC | Sitronix ST7066U (or equivalent) |
| Interface | 4-bit Parallel and 8-bit Parallel |
| LCD Module Dimensions (w x h x d) | 122 x 44 x 13.6 (MAX) mm |
| Viewing Area (w x h) | 99 x 24 mm |
| Dot Size (w x h) | 0.92 x 1.1 mm |
| Dot Pitch (w x h) | 0.98 x 1.16 mm |
| Driving Method | 1/16 Duty |
| Operating Temperature | -20 ~ 70°C |
