NRND

162D Series

16x2 Character LCD Display

  • 162D

    Request a Quote

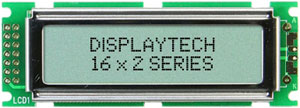

    162D Character LCD Module Series

    The 162D is one of our 16 character x 2 row chip on board (COB) alphanumeric displays. These classic 16x2 LCD modules are available in a multitude of LCD and LED backlight color combinations to achieve the perfect look for your product. Some of our most popular combinations are STN yellow-green LCD with yellow-green LED backlight, STN blue LCD with white LED backlight, and STN grey LCD with either blue, amber or pure green LED backlight.

    Technical Overview

    Status Not Recommended for New Design
    Replacement LCD 162K
    Display Format 16x2
    Character Matrix (w x h) 5 x 8
    Character Size (w x h) 2.78 x 4.89 mm
    LCD Controller and Driver IC Sitronix ST7066U and ST7065C
    Module Size (w x h x d) 85 x 30 x 11 mm (14 mm max with LED backlight)
    View Area (w x h) 62 x 16 mm
    Pixel Size 0.5 x 0.55 mm
    Driving Method 1/16 Duty, 1/5 Bias
    Operating Temperature -20 ~ 70°C
