NRND
162B Series
16x2 Character LCD Display
Request a Quote

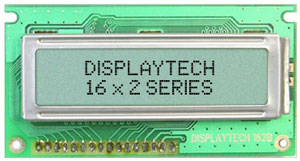

162B Character LCD Module Series
The 162B is one of our 16 character x 2 row chip on board (COB) alphanumeric displays. These classic LCD modules are available in a multitude of LCD and LED backlight color combinations to achieve the perfect look for your product. Some of our most popular combinations are STN yellow-green LCD with yellow-green LED backlight, STN blue LCD with white LED backlight, and STN grey LCD with either blue, amber or pure green LED backlight.
Technical Overview
| Status | Not Recommended for New Design |
| Replacement LCD | 162H |
| Display Format | 16x2 |
| Character Matrix (w x h) | 5 x 8 |
| Character Size (w x h) | 2.95 x 5.55 mm |
| LCD Controller and Driver IC | Sitronix ST7066U and ST7065C |
| Module Size (w x h x d) | 84 x 44 x 11 mm (14 mm max with LED backlight) |
| View Area (w x h) | 65.6 x 16 mm |
| Pixel Size | 0.55 x 0.65 mm |
| Driving Method | 1/16 Duty, 1/5 Bias |
| Operating Temperature | -20 ~ 70°C |
