NEW
DT050BTFT
5" Color TFT LCD Display with Enhanced Viewing Angle
-
-
Request a Quote

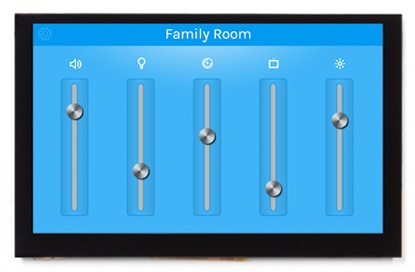

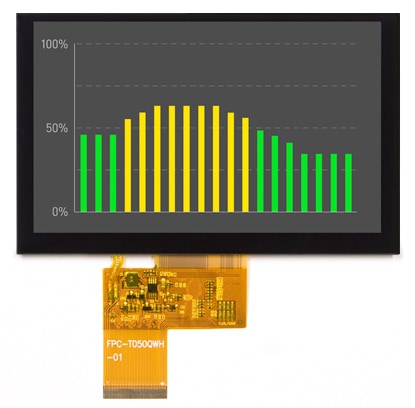

800x480 5" TFT Display with Full Viewing Angle and Optional Touch Screen
Elevate your product's performance with the DT050BTFT display – a 5” TFT LCD module built for technical excellence. With a full viewing angle feature, this 5-inch LCD display offers enhanced visibility from any orientation. The 800 x 480 resolution and 24-bit RGB parallel interface, along with optional resistive or capacitive touch panel, allows this TFT LCD to be the optimal choice for digital devices requiring a 5-inch display.
Technical Overview
| Diagonal Screen Size | 5.0 inch |
| Display Resolution | 800 (RGB) x 480 |
| Viewing Angle | ALL |
| Interface Type | 24-bit RGB |
| Luminance | 500 cd/m2 |
| LCD Gate and Source Driver IC | Ilitek ILI5960 and ILI6137 |
| Module Size (w x h) | 120.7 x 75.8 mm |
| Active Area (w x h) | 108 x 64.8 mm |
| Pixel Size | 0.135 x 0.135 mm |
| Operating Temperature | -20 ~ 70°C |
| Touch Screen Options | Resistive Touch Screen or Capacitive Touch Screen |
| PCAP Touch Controller | FocalTech FT5x26 |
